Switch vs. Relay: Unveiling the Distinctions and Applications

In the realm of electrical engineering, switches and relays play crucial roles in controlling the flow of current. While they may seem similar at first glance, there are distinct differences between these two devices. This article aims to delve into the dissimilarities and shed light on their unique applications, providing a comprehensive understanding of the switch and relay technologies.

1. Functionality:
   Switches:
   A switch is an electronic component that enables the opening or closing of an electrical circuit manually or automatically. It acts as a bridge, allowing or interrupting the flow of current between two or more terminals. Switches are commonly used to control lights, fans, and other appliances in homes, offices, and industrial settings.

Relays:

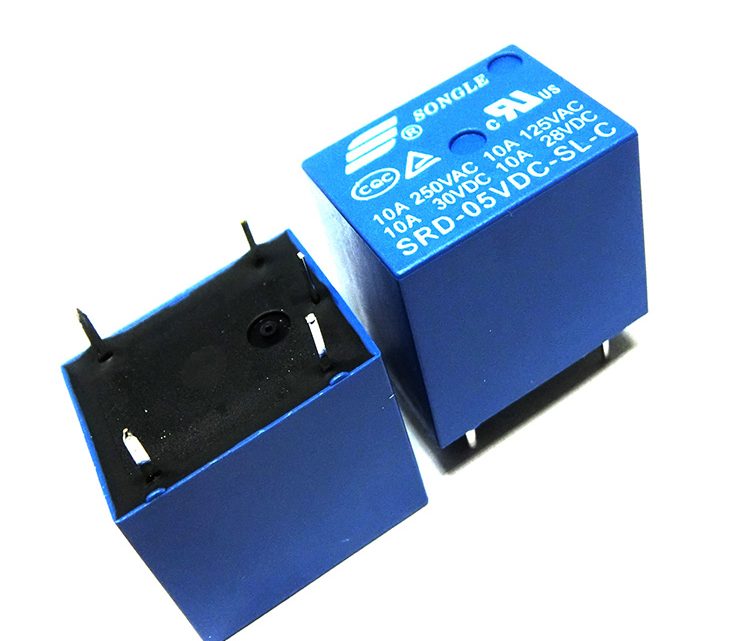

On the other hand, a relay is an electrically operated switch that utilizes an electromagnet to mechanically control the opening and closing of circuits. It acts as a remote-controlled switch, allowing a low-power signal to control a high-power circuit. Relays are extensively employed in applications such as motor control, automotive systems, and industrial automation.

2. Contact Types:
   Switches:
   Switches can be categorized into different types based on their contact configurations. The most common types include single-pole single-throw (SPST), single-pole double-throw (SPDT), double-pole single-throw (DPST), and double-pole double-throw (DPDT). Each type offers specific functionality, enabling various circuit arrangements and control options.

Relays:
Relays, too, come in different contact configurations, including normally open (NO), normally closed (NC), and changeover (CO) contacts. These contact types allow relays to perform diverse tasks, such as switching between two circuits, providing fail-safe operations, or controlling multiple devices simultaneously.

3. Control Mechanism:
   Switches:
   Switches are typically controlled manually by physical interaction, such as flipping a lever or pressing a button. However, advancements in technology have led to the development of electronic switches that can be controlled remotely or automatically through sensors, microcontrollers, or software.

Relays:
Relays, as mentioned earlier, are electrically operated switches. They are controlled by applying a voltage or current to the relay coil, which generates a magnetic field, causing the contacts to open or close. This control mechanism allows relays to be controlled remotely, making them suitable for applications requiring long-distance control or integration with complex systems.

4. Power Handling Capacity:
   Switches:
   Switches are designed to handle a wide range of power loads, from low-power applications like signaling circuits to high-power applications like industrial machinery. They are available in various ratings, ensuring compatibility with the specific power requirements of the circuit or device being controlled.

Relays:
Relays excel in handling high-power applications due to their ability to control circuits with significantly higher currents or voltages than the control signal itself. This characteristic makes relays indispensable in scenarios where the control circuit cannot handle the power directly, such as in heavy machinery or power distribution systems.

Conclusion:
In summary, while switches and relays both serve the purpose of controlling electrical circuits, their differences lie in functionality, contact types, control mechanisms, and power handling capacities. Understanding these distinctions is crucial for selecting the appropriate device for a given application, ensuring efficient and reliable circuit control.
